Rhino Electric Winch 12v / 24v 20000lbs Steel Cable Heavy Duty Remote Control

Every Rhino winch is built to the highest specification, designed for serious off-roading, self-recovery and professional recovery specialists. Also anyone who wants that extra piece of mind knowing that they have a Rhino to protect them if they get into trouble in their vehicle. Rhino are powerful industry leaders providing quality winches for ultimate recovery needs.

Rhino winches range from smaller 3,000lb models to 20,000lb units. Whether you’re looking to recover a quad bike, car, motorhome, boat or truck, Rhino has the power to get the job done!

When adventure calls we are the front line.

Redefining Expectations
Rhino have developed their winches to be smooth, quiet and ultra-reliable. Featuring the very best materials and design such as three stage planetary gears for smooth and dependable operation. These winches come with a wired remote and two wireless remotes each with 'in' and 'out' to give you total control.

Designed to Outperform Any Other Brand
Building on years of winch design experience, Rhino winches have established a fantastic reputation through several years of sales across the UK and Europe. Buying from a trusted brand like Rhino means you can be sure to get the best design and build quality.

DON'T FORGET YOUR MOUNTING PLATE!
Rhino Also Make The Best Mounting Plates
If you need a mounting plate, Rhino can supply one that is designed to be a perfect fit for this winch. Mounting plates are needed if you do not have an existing one. Rhino mounting plates are the very best, offering the highest build quality.

Where to Find A Rhino Mounting Plate
When looking for a mounting plate for your winch, be sure to buy a Rhino mounting plate. The link below will take you straight to the compatible mounting plate for this winch.

SPECIFICATIONS
Rated single line pull: 20000lb (9072kg)
Motor: DC 7.8HP/5.7KW Series Wound Motor
Control: big grip, extra long 3.7m lead, 2 x wireless remotes
Gear reduction ratio: 265 to 1
Clutch: sliding ring gear
Braking action: Automatic load holding brake in the drum
Drum size: Diameter 89mm (3.4")Length 224mm(8.82")

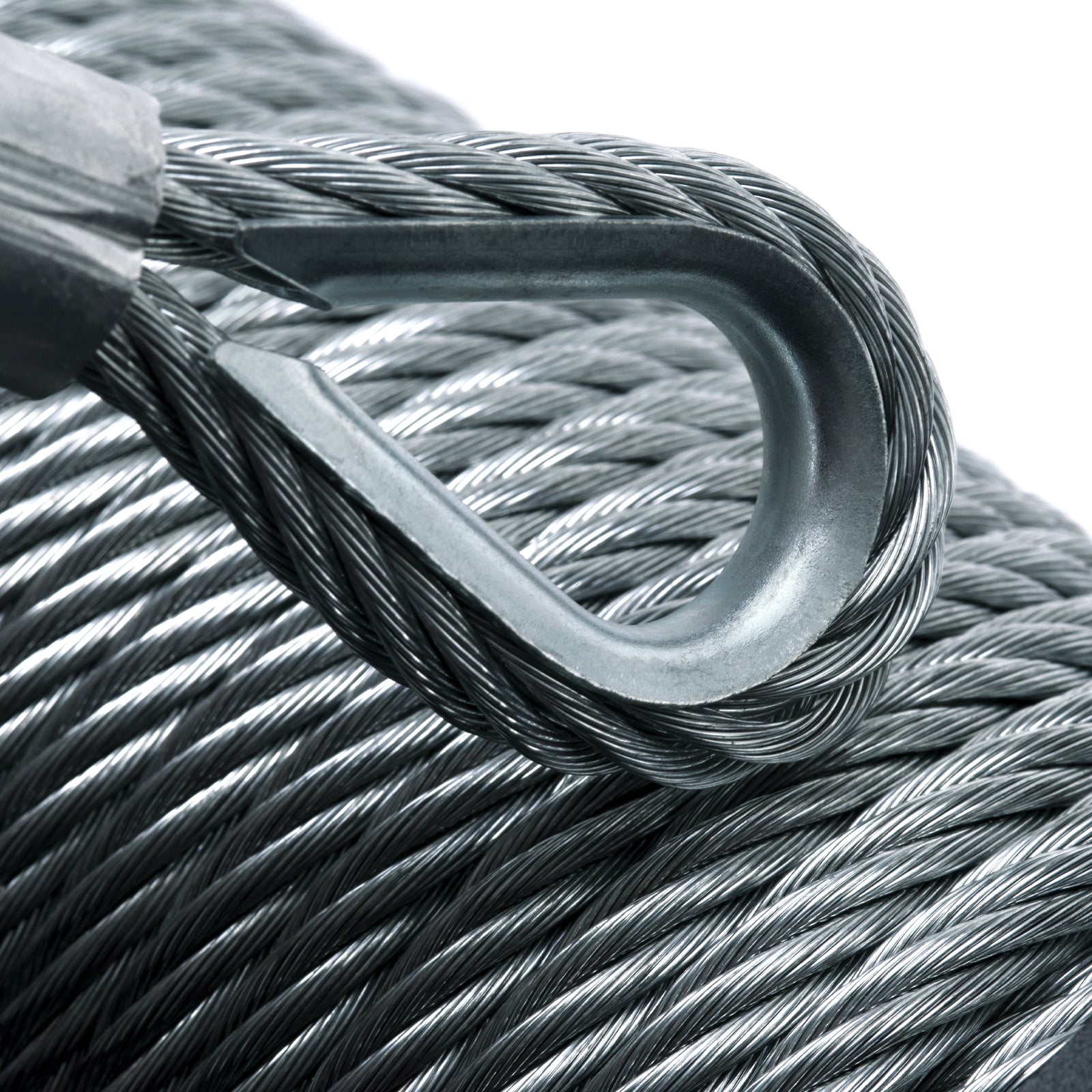

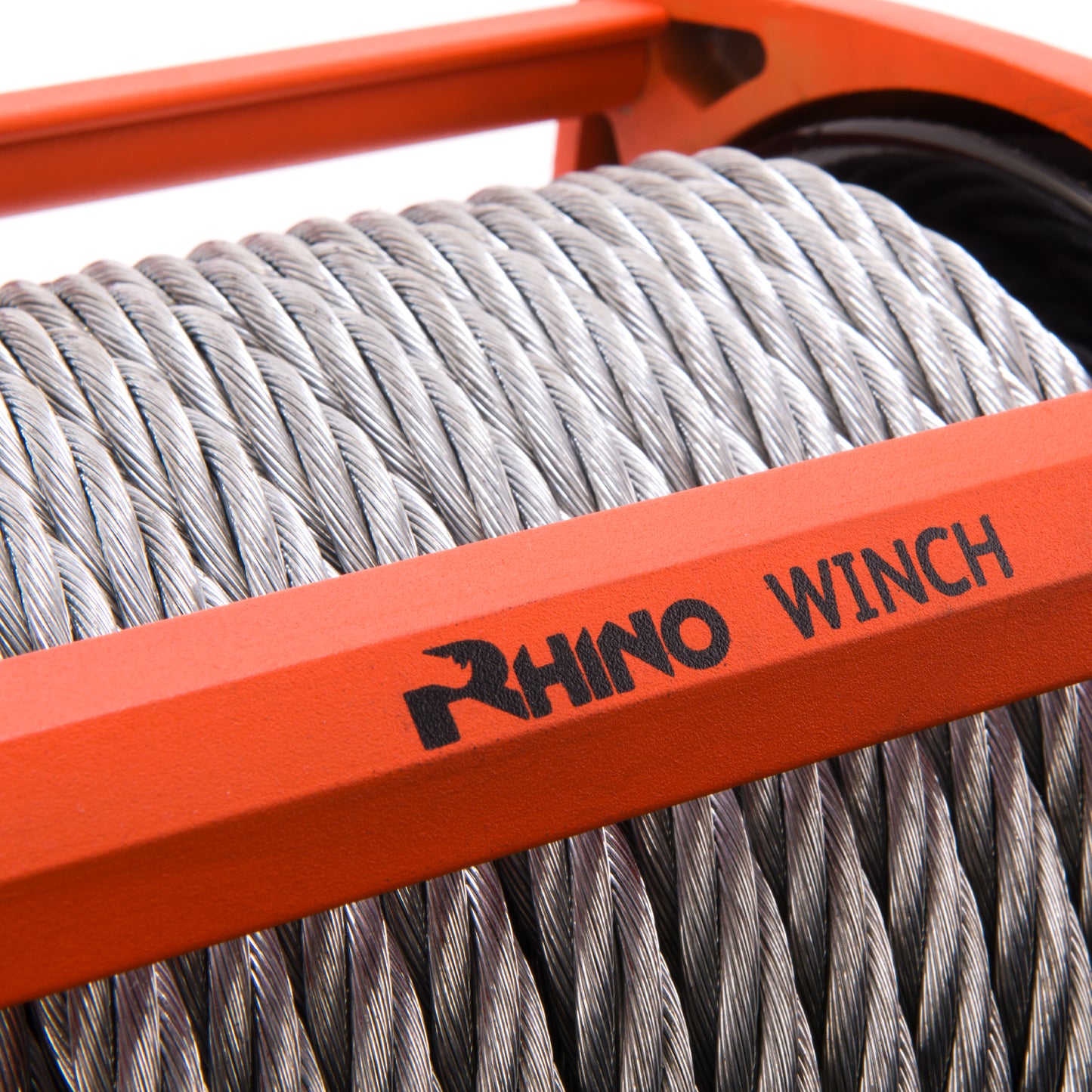

Cable: 28m of 12.5mm Diameter
Fairlead: 4-way stainless roller

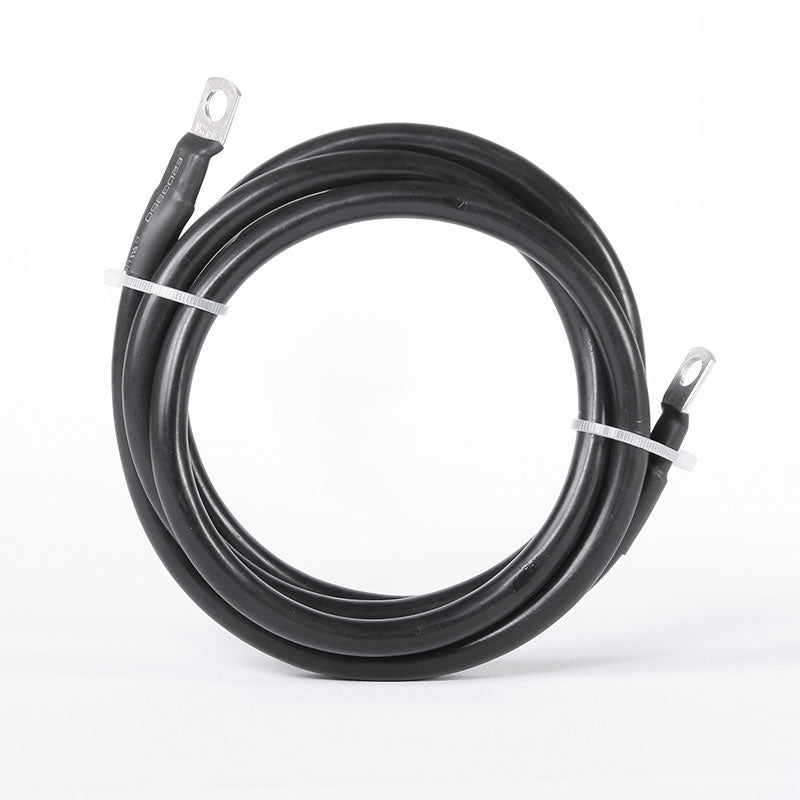

Battery leads: 2 gauge, 1.83m (72") 35mmsq - 6.5mm diameter
Finish: Orange (Powder Coated)

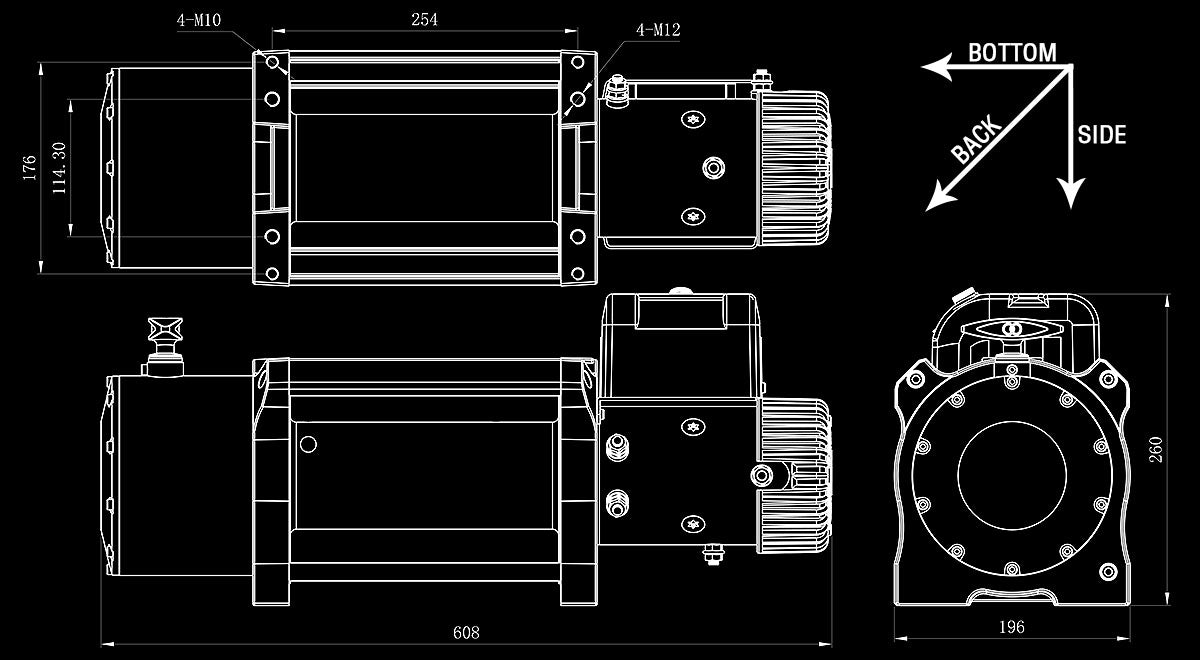

Mounting bolt pattern: 254 x 114.3mm) Universal Standard
Gear reduction ratio:469 to 1
Motor current: 80-400A
No load line speed: 7.2m/min (23.75 ft/min)

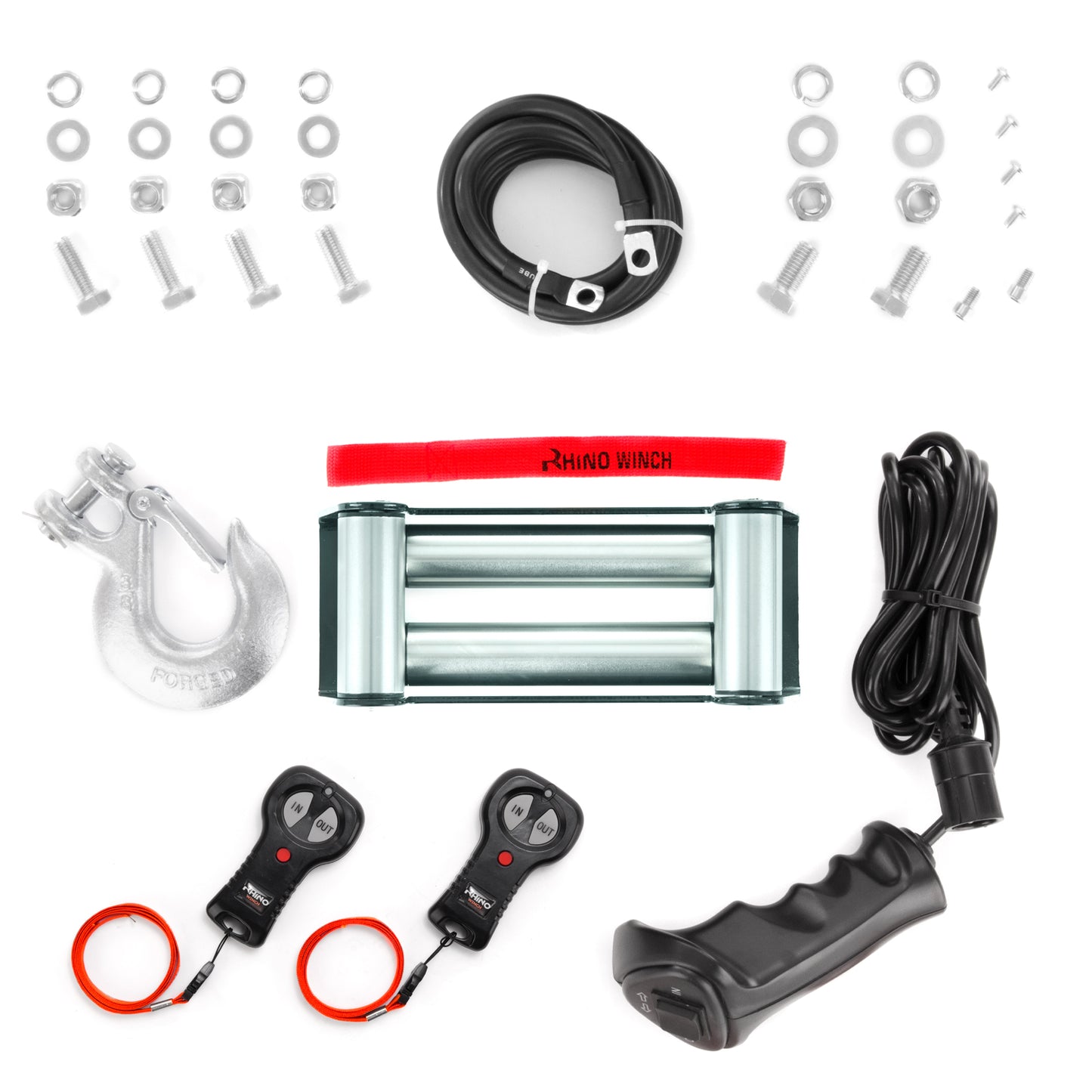

IN THE BOX
20,000lb Winch
1 x Heavy duty fairlead roller
1 x Clevis hook with safety clip and marker tab

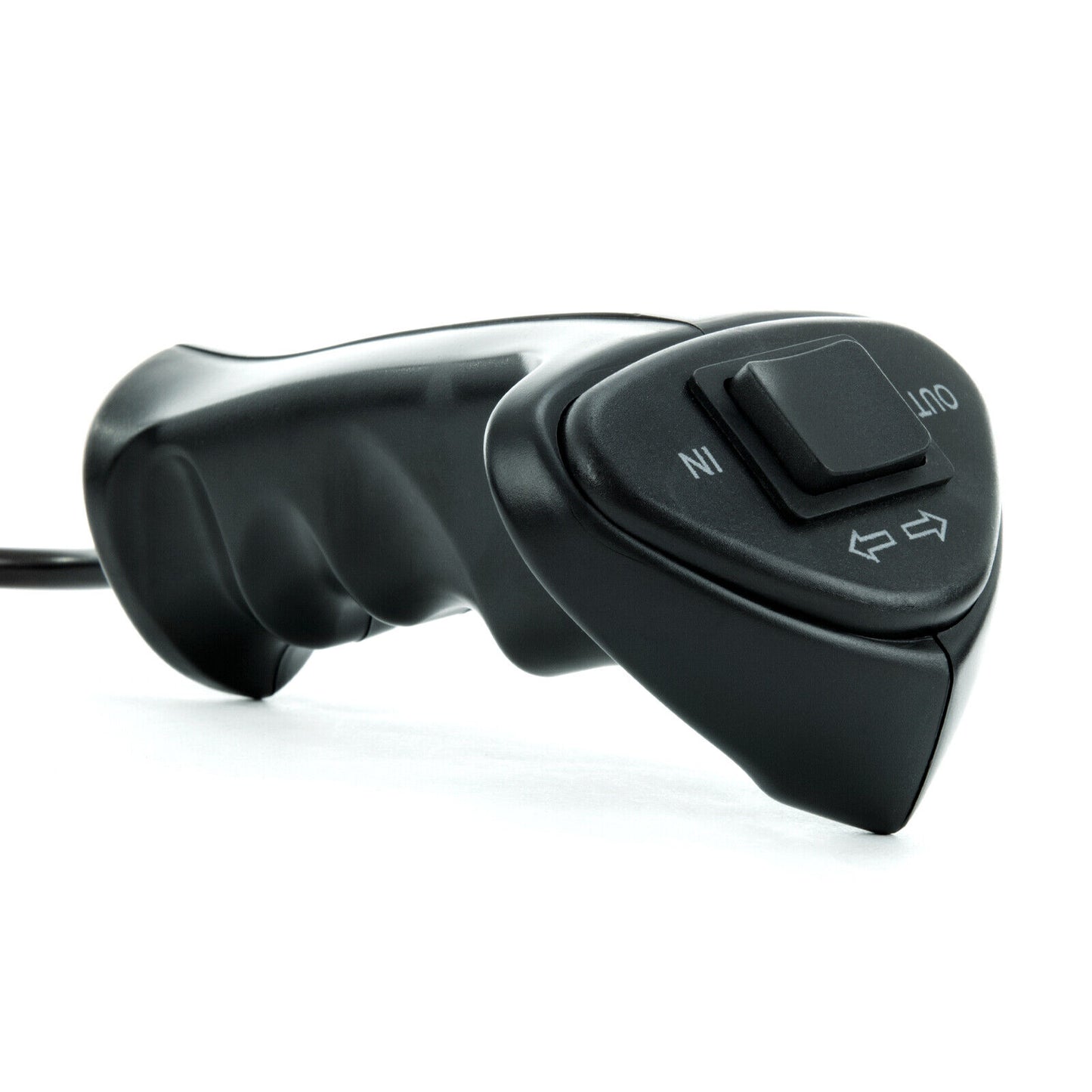

1 x Big grip hand held remote control
2 x Wireless remote Control + lanyards
1 x Control box
1 x 500A Solenoid
1 x 27mtr multi stranded steel cable fitted to drum
1 x Set of stainless steel fitting nuts & bolts

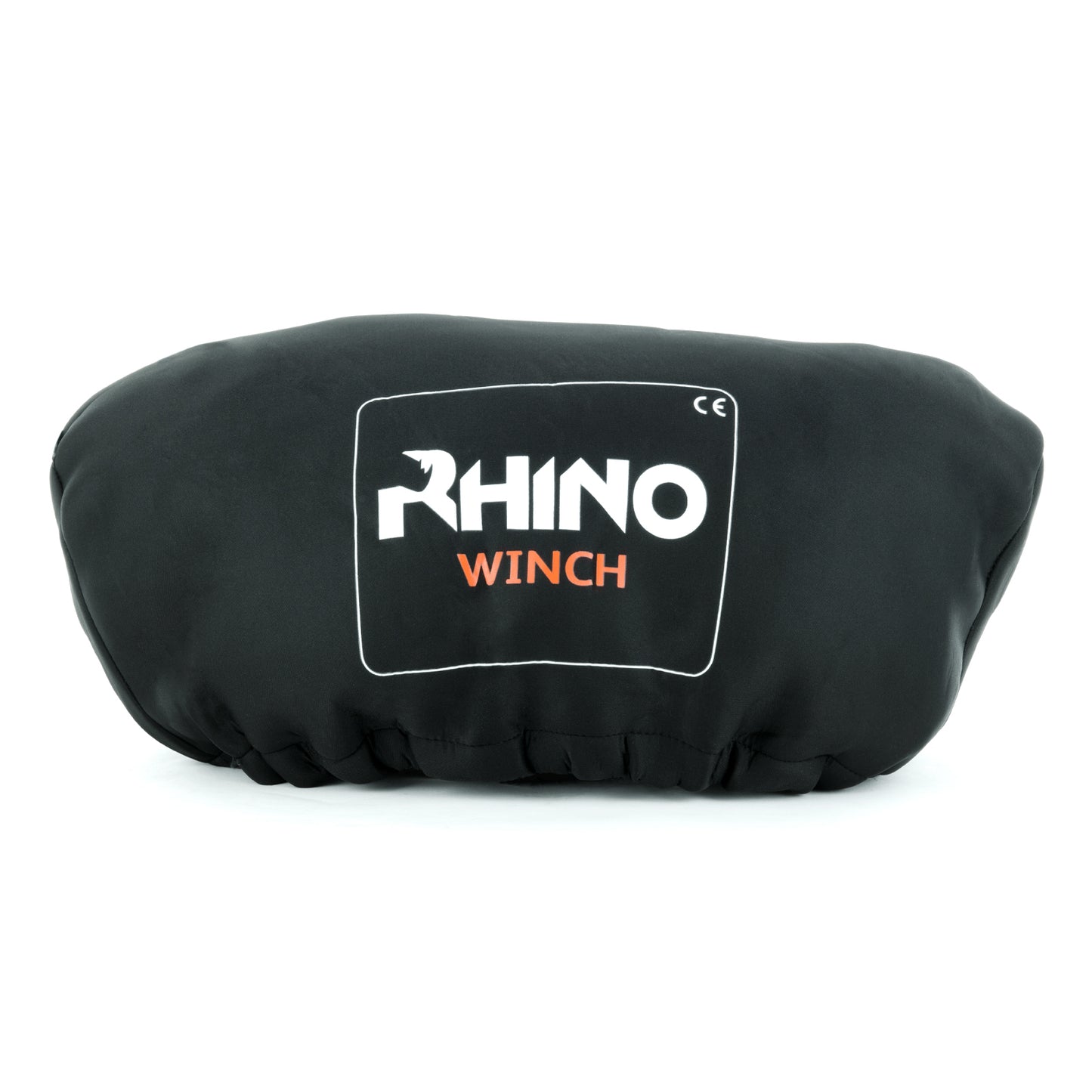

1 x Neoprene winch cover

SIZE & WEIGHT
Dimensions: 420mm x 500mm x750mm
Gross Weight: 85 KG
