KUS Tachometer | Marine Boat & Car RPM Gauge with LCD Hourmeter (0-6000 RPM)
KUS Tachometer | Marine Boat & Car RPM Gauge with LCD Hourmeter (0-6000 RPM)
Regular price
Rs 4,800.00 MUR
Regular price
Sale price
Rs 4,800.00 MUR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Digital Hourmeter - White

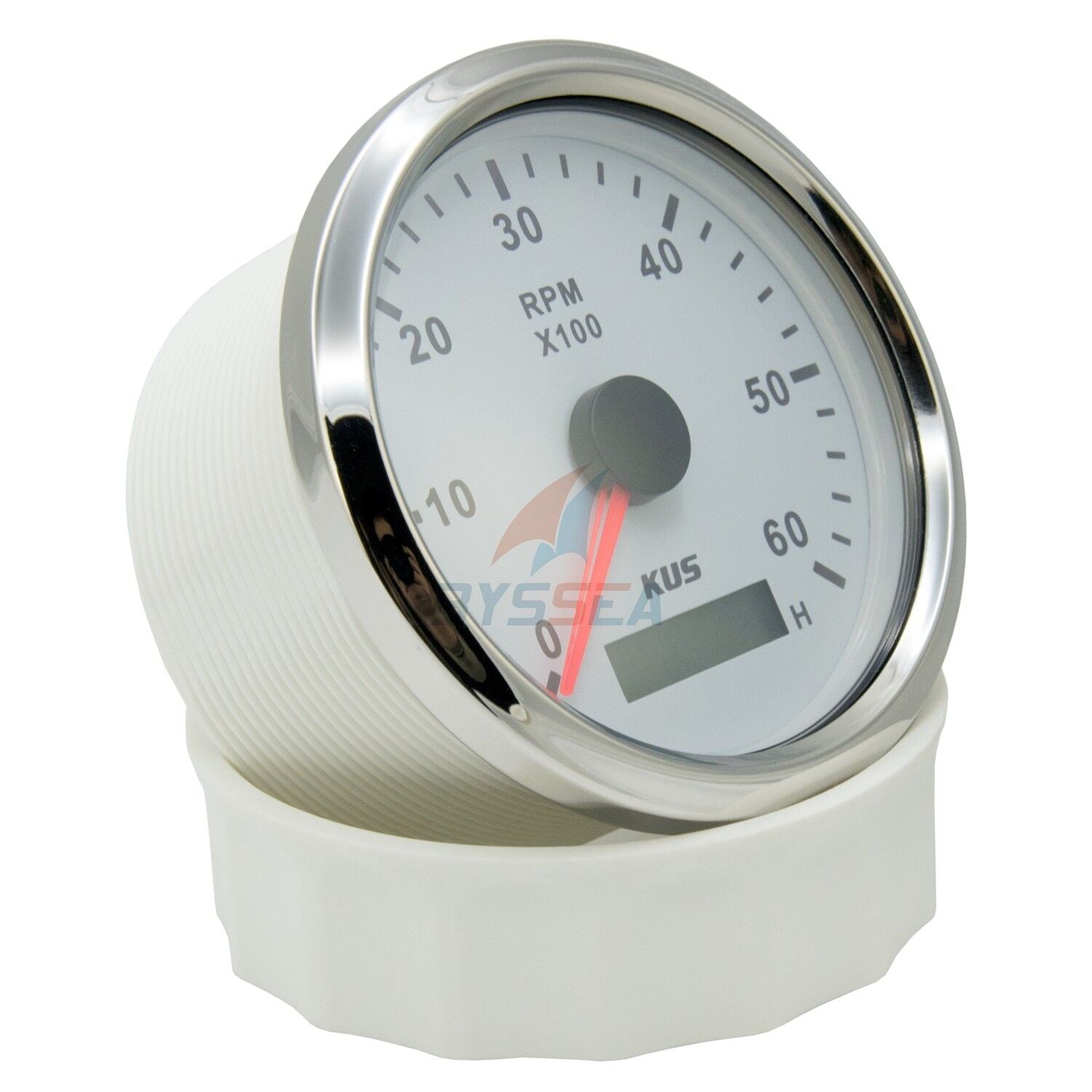

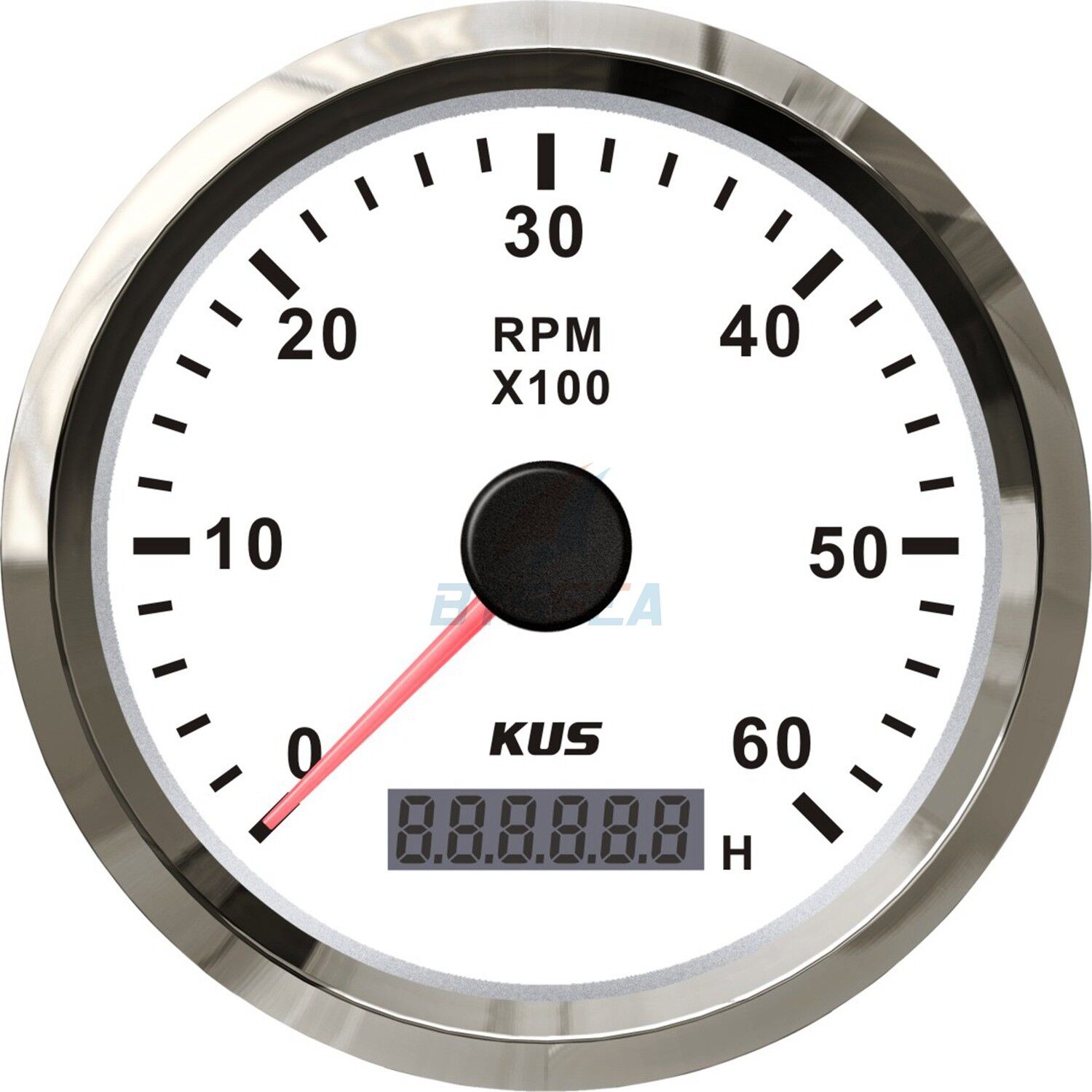

This KUS gauge is a marine grade tachometer and digital hourmeter combined into a sturdy, reliable unit. The gauge is designed with the rigours of marine use in mind. Built to withstand 1m submersion and utilising a stepper motor system, this gauge is sturdy and reliable. This gauge operates on either a 12 or 24 volt system.
This gauge uses a 85mm (3 3/8") panel cutout, and will require 55mm (2 3/16") behind the panel for clearance. This gauge has both a red and yellow light, to suit your vessels aesthetic. Simply wire the desired colour.

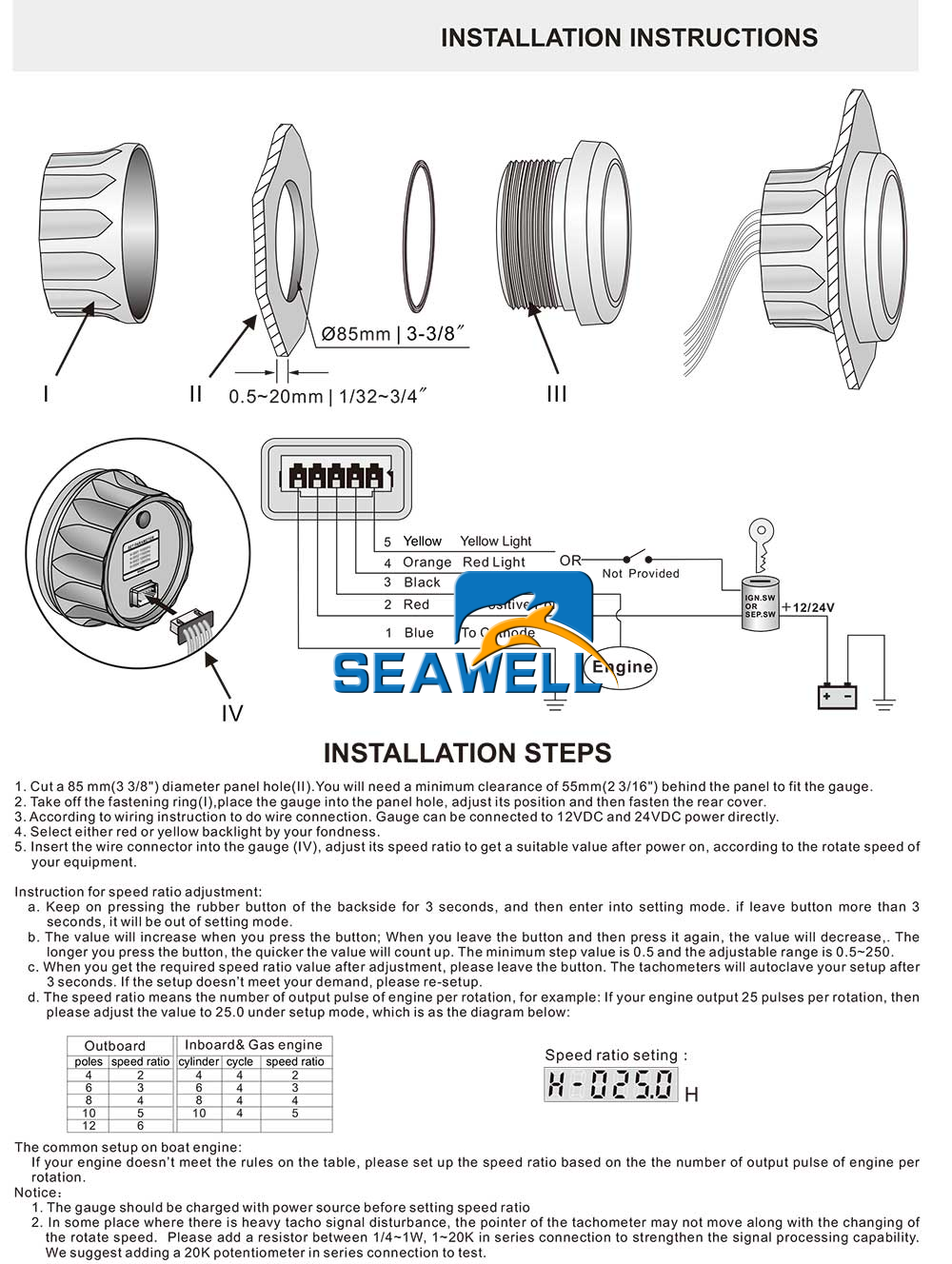

Installation is easy with the two part system. After aligning the gauge with the alignment tab, simply slide through and fasten the locking ring from the rear. This gauge will suit panels 0.5-20mm thick (1/32" - 3/4"). Adjustment for the gear ratio is simple, using the single button system found on the rear.
The supplied wiring loom is coloured to ensure easy identification.
Yellow: Yellow Light
Orange: Red Light
Black: To RPM signal
Red: To positive pole.
Blue: To ground/cathode.
KUS hold industry standards and are installed globally through millions of trucks, boats, and off road vehicles per year. KUS quality control and management is held to such high regard that they have been awarded the ISO/TS1694 and ISO9001 standards.
Specifications
Style: Black with Black Bezel
Stepper Motor system
85mm (3 3/8") Installation size
55mm (2 3/16") Depth
Red or Yellow Background light
IP7 Protection grade
12/24v
1.0-10.0 Signal
0-6000 RPM range
Package Includes:
1 x KUS Black 6000RPM Tachometer with Digital Hour meter
1 x Wiring loom
Mounting and wiring instructions.
This KUS gauge is a marine grade tachometer and digital hourmeter combined into a sturdy, reliable unit. The gauge is designed with the rigours of marine use in mind. Built to withstand 1m submersion and utilising a stepper motor system, this gauge is sturdy and reliable. This gauge operates on either a 12 or 24 volt system.
This gauge uses a 85mm (3 3/8") panel cutout, and will require 55mm (2 3/16") behind the panel for clearance. This gauge has both a red and yellow light, to suit your vessels aesthetic. Simply wire the desired colour.
Installation is easy with the two part system. After aligning the gauge with the alignment tab, simply slide through and fasten the locking ring from the rear. This gauge will suit panels 0.5-20mm thick (1/32" - 3/4"). Adjustment for the gear ratio is simple, using the single button system found on the rear.
The supplied wiring loom is coloured to ensure easy identification.
Yellow: Yellow Light
Orange: Red Light
Black: To RPM signal
Red: To positive pole.
Blue: To ground/cathode.
KUS hold industry standards and are installed globally through millions of trucks, boats, and off road vehicles per year. KUS quality control and management is held to such high regard that they have been awarded the ISO/TS1694 and ISO9001 standards.
Specifications
Style: Black with Black Bezel
Stepper Motor system
85mm (3 3/8") Installation size
55mm (2 3/16") Depth
Red or Yellow Background light
IP7 Protection grade
12/24v
1.0-10.0 Signal
0-6000 RPM range
Package Includes:
1 x KUS Black 6000RPM Tachometer with Digital Hour meter
1 x Wiring loom
Mounting and wiring instructions.
